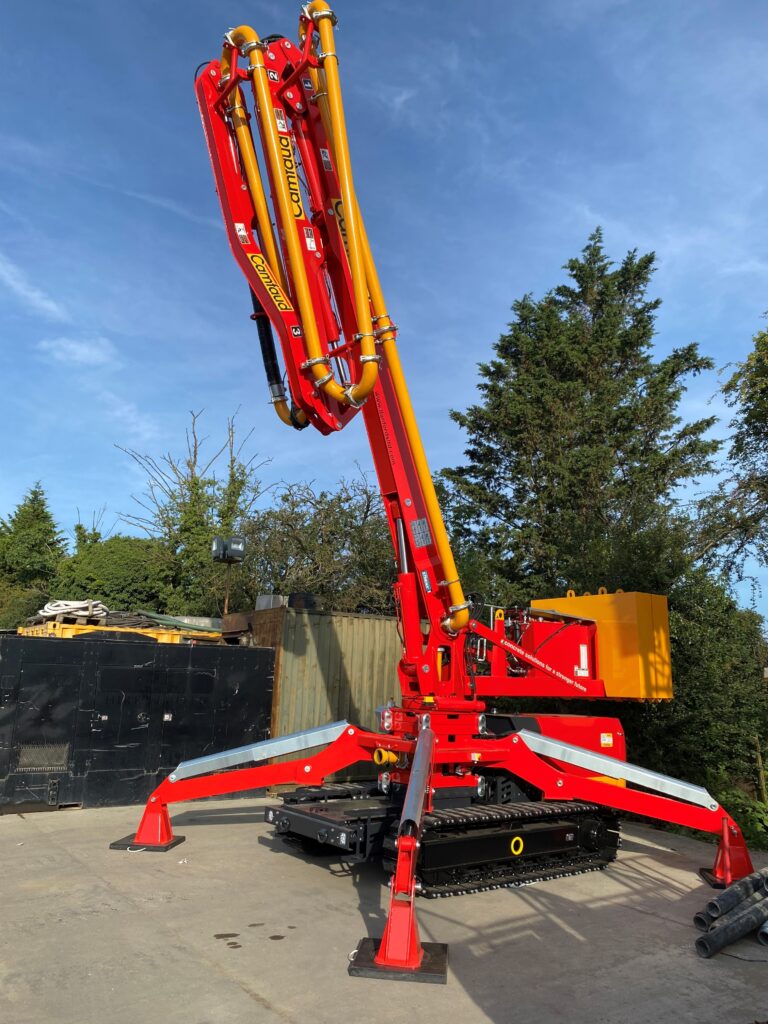

SPB 18 – Tracked Placing Boom
SPB 18 Tracked Placing Boom
| SPB 18 | Tracked Placing Boom |
|---|---|
| Horizontal reach | 18m |
| Vertical reach | 21m |
| Unfolding height | 4.35m |
| Number of arms | RZ4 |
| Pipe diameter | 125mm |
| End hose | 3m DN125, 4m DN100 |
| Concreting area | 254m (squared) |
| Delivery line (DN/Pressure) | 85bar DN 125 |
| Weight (without concrete and counterweight) | 8410kg |
| Counterweight (not optional) | 3000kg |
| Outrigger dimensions | 4.45m x 4.45m |
| Power | Diesel (Boom and Tracks) Electric (Boom) |
These are manufacturers’ data sheets and are for guidance only. Figures quoted may vary slightly with different models and the age of the machine.
